DOWNLOAD
TOTOLINK EX1200M Firmware
File size: 3.16MB
Setup
TOTOLINK EX1200M Setup

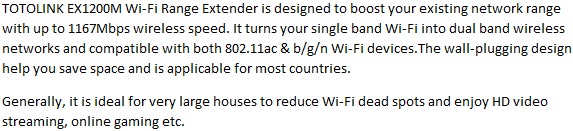

REVIEW
Features:
- Complies with 802.11ac/a/b/g/n standards.
- Turns your single band Wi-Fi to dual-band Wi-Fi
- Delivers up to 300Mbps on 2.4G band or 867Mbps on the 5G band
- Two external antennas enhance the throughput’s stability
- Supports handy APP for flexible Wi-Fi extension and network management
- Supports easy and quick setup by smartphones
- Supports WPS (Wi-Fi Protected Setup) with one-click button
- Two signal strength LED indicators to help you get optimum position for the extender
- Supports two working modes: AP Mode and Extender Mode
- Wi-Fi Scheduler is better for parental control to prevent children caught in the Web
-Wall-plug design saves your space
Specifications:
Hardware Interface: 1 *10/100Mbps Ethernet port
Power Supply: AC 100V~240V / 50~60Hz 0.1A
Antenna: 2 *5dBi External Antennas
Button: 1 *5GHz WPS , 1*2.4GHz WPS, 1 *Power ON/OFF Slide Switch, 1*RST
LED Indicators: 1*2.4G, 1* 5G, 1 *Power, 1 *CPU, 1 *5G EXT, 1*2.4G EXT, 1*LAN
Wireless Standards: IEEE802.11ac, IEEE 802.11a, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
RF Frequency: 2.4GHz/5GHz
Data Rate: 2.4GHz: 300Mbps // 5GHz: 867Mbps
EIRP
- 2.4GHz < 20dBm
- 5GHz < 23dBm
Reception Sensitivity
-2.4G: 11b:<-79dBm；11g：<-68dBm；11n:HT20<-65dBm HT40：<-61dBm
- 5G: 11a:<-68dBm；11ac: HT20<-65dBm HT40：<-61dBm HT80：<-51dBm
Operating Temperature: 0℃~50 ℃ (32 ℉~122℉)
Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
